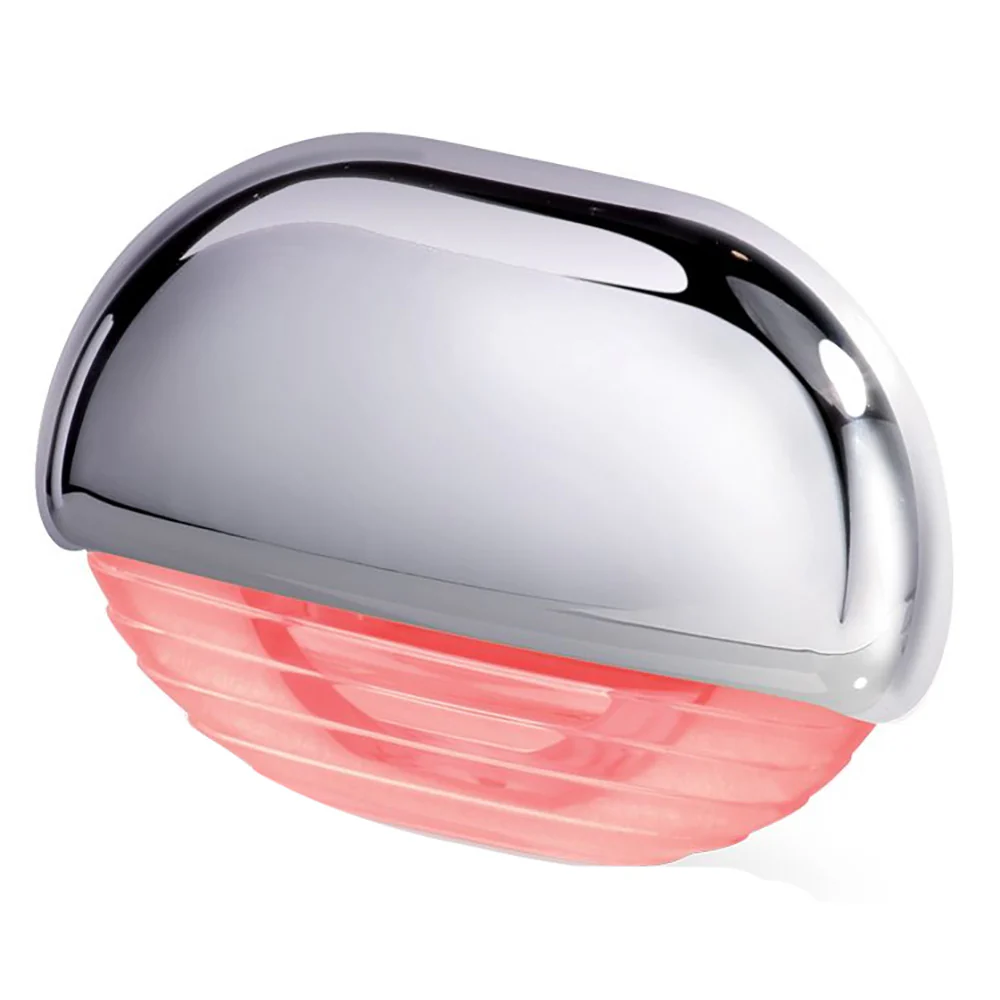

Easy Fit Step Lamp - Red with Chrome Cap

Attractive and timeless LED courtesy lighting for a wide variety of interior and exterior lighting applications.

Light is radiated downward at an angle of 30°. This lamp is ideal for illuminating onboard areas such as steps, stairs, toe kicks, storage areas, companion ways, deck fittings, signs, and switches without shining in the eyes.

Features:

• The lamp is pre-wired with 100mm of marine cable and supplied with stainless steel screws
• The optic appears clear until illuminated
• Multivolt electronics ensure constant light output in 12V or 24V DC systems
• Easy Fit Gen 2 series lamps are completely sealed, shock and vibration-resistant, and represent reliable 'fit and forget' technology

Specifications:

• Lens Material: UV-resistant enhanced impact acrylic
• Cap Material: Chrome-plated plastic
• Light Color: Red
• Cable: Pre-wired with 100mm of twin-core marine cable
• Operating Voltage: Multivolt for optimum brightness in 12 and 24-volt systems
• Power Consumption: 0.5W ( < 0.04A@12V / < 0.02A@24V )
• Degree of Protection: IP 67 - Completely Sealed
• Weight: Stainless Cap - 30g (including cable). Plastic Cap - 15g (including cable)
• Approvals: CE, RCM

Specifications:

• Bulb Type: LED
• Housing: Chrome
• LED Color: Red
• Voltage - Input Range (Volts): 12/24v
• Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs
• UPC: 9416325238331

Quick Guide (pdf)
