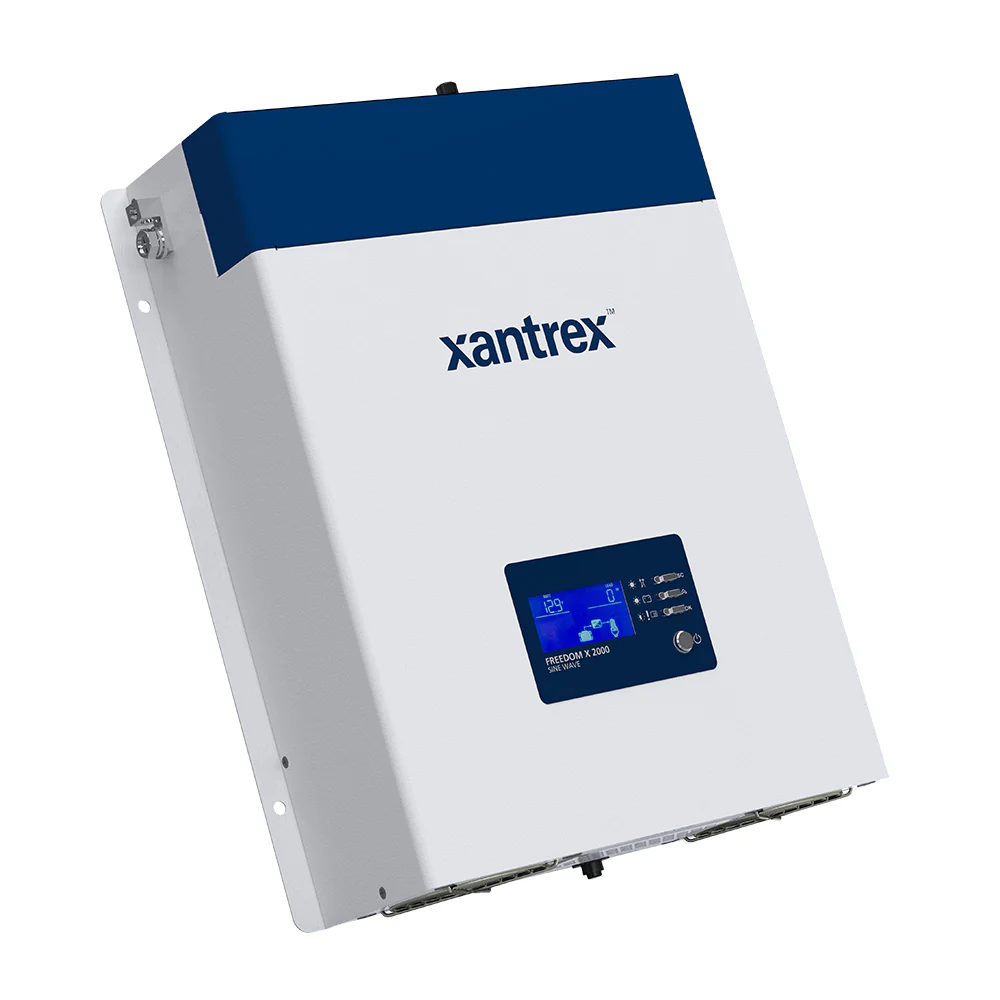

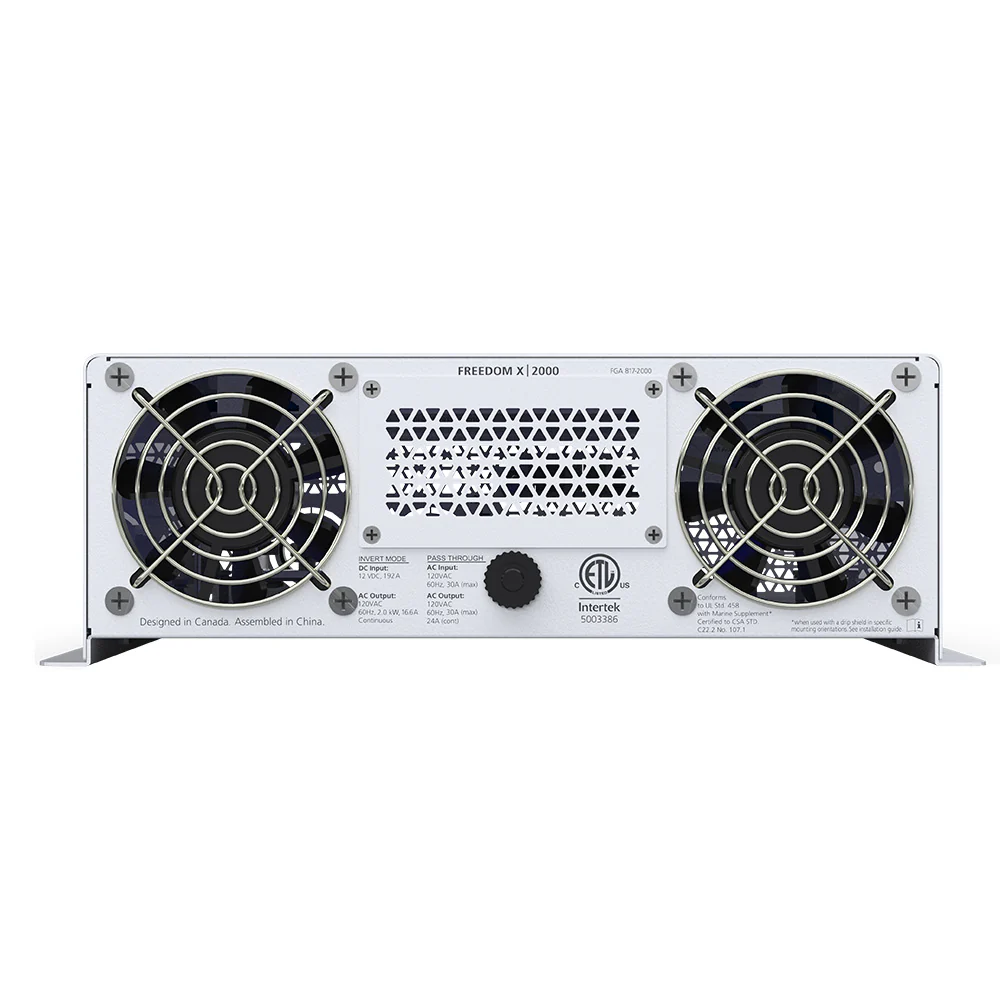

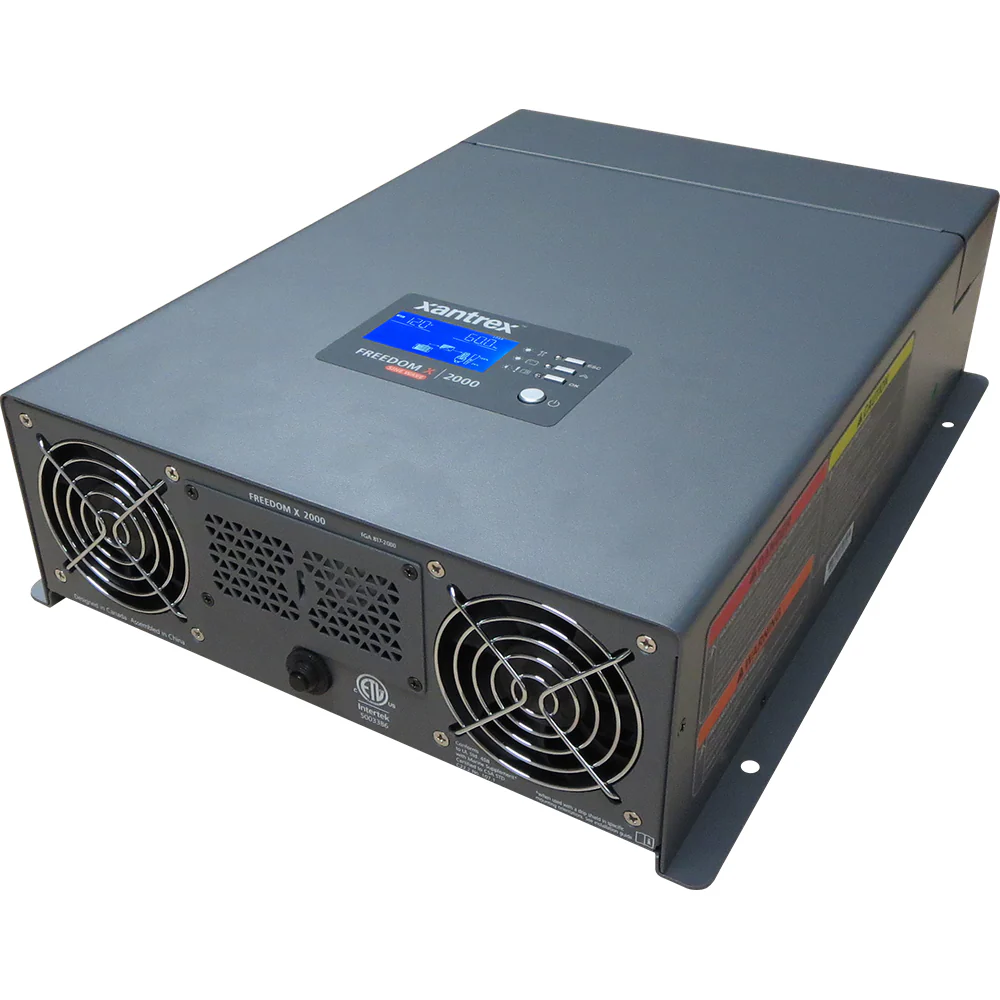

Freedom X 2000 True Sine Wave Power Inverter - 24VDC - 120VAC - 2000W

True sine wave 120VAC inverter with built-in transfer switch. Designed for recreational and commercial applications.

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Features:

• Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 24 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode

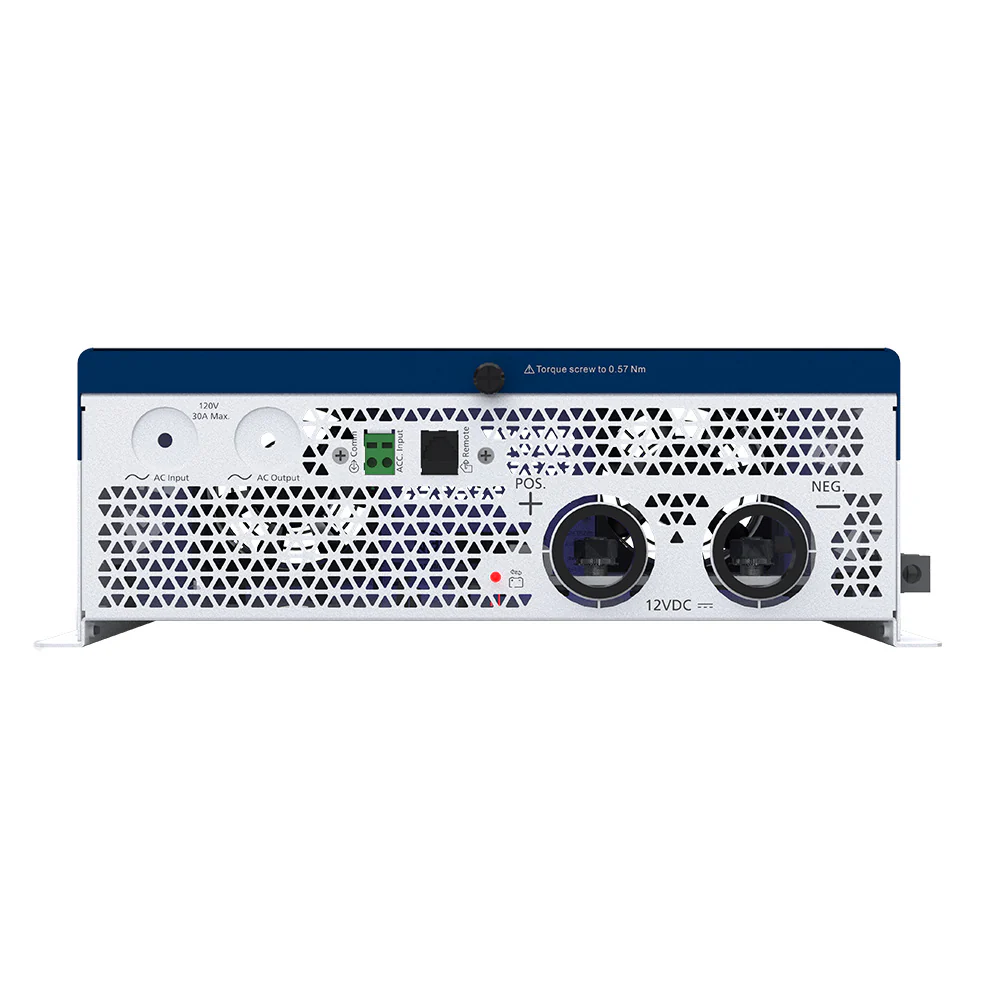

• Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• AC Connection Type: Hardwire
• DC Connection Type: Hardwire
• GFCI: Yes
• Inverter Cont. Output Wattage: 2000w
• Inverter Input Voltage: 24v
• Inverter Output Voltage: 120v
• Inverter Surge Rating: 4000w
• Outlet Qty: 1 Duplex GFCI
• Waveform: True Sine Wave
• Box Dimensions: 9"H x 16"W x 20"L WT: 17.5 lbs
• UPC: 715535904807

Owner's Manual (pdf)
Brochure (pdf)
